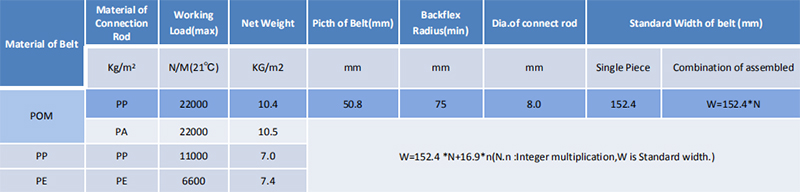

Product Description :

1:Work Load: (POM) 22000N/M, (PP) 22000N/M
2:Application:Tinplate bottle.PET bottle conveyor. Aluminum cans, for the transition of small objects,

    but also can be used in medicine. The cosmetics, biscuits and other delivery systems.
3:Color: White, blue,brown

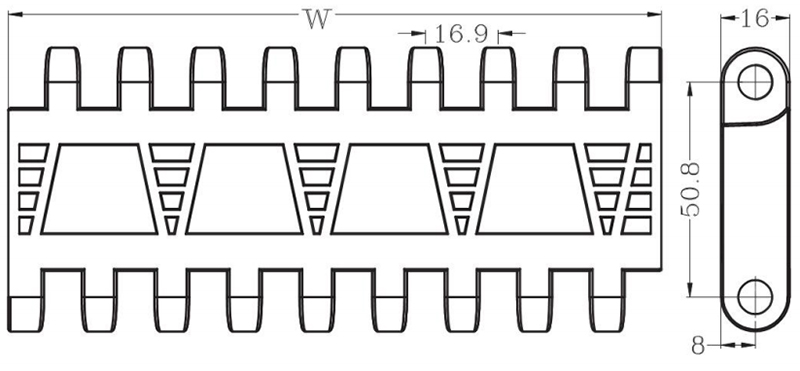

4:Pitch: 50.8 mm

5:Customizable products with samples and drawings

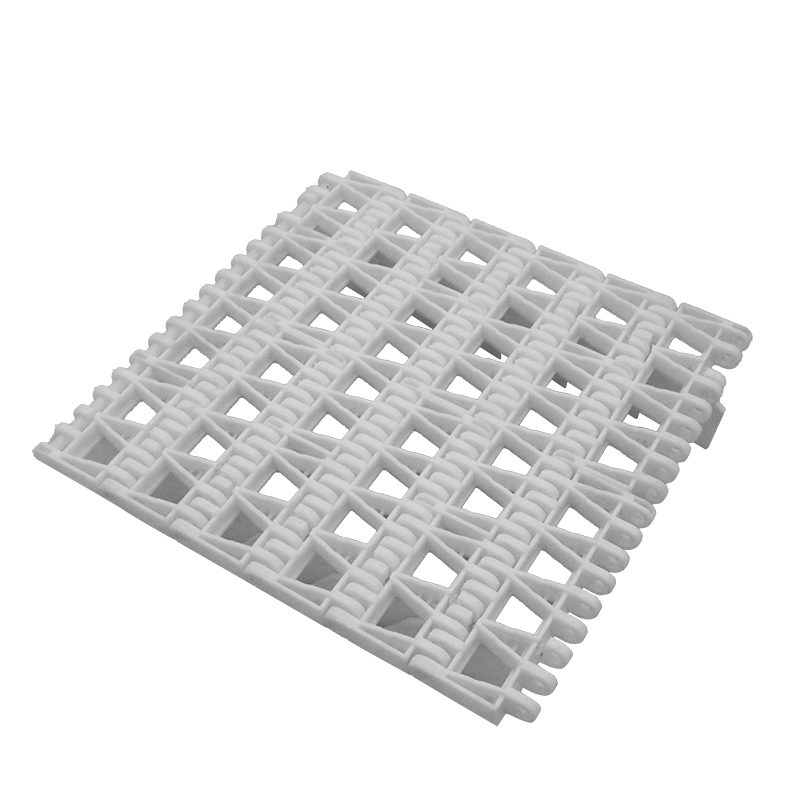

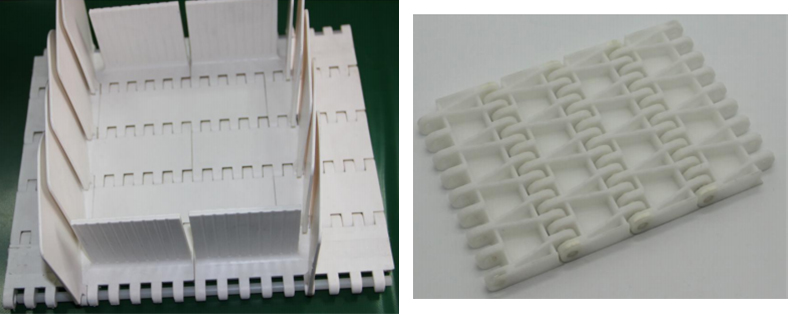

Products Show:

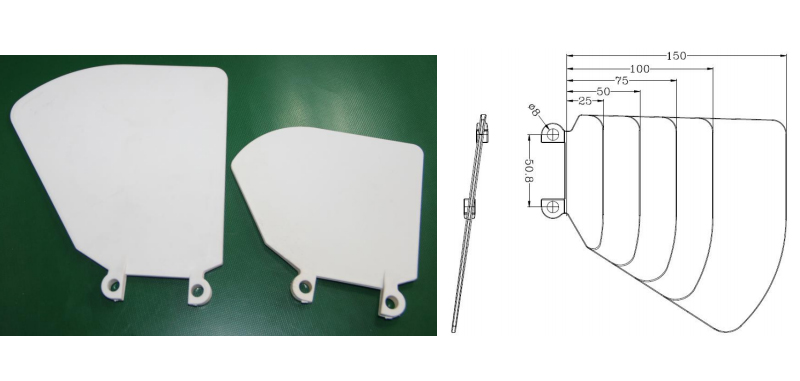

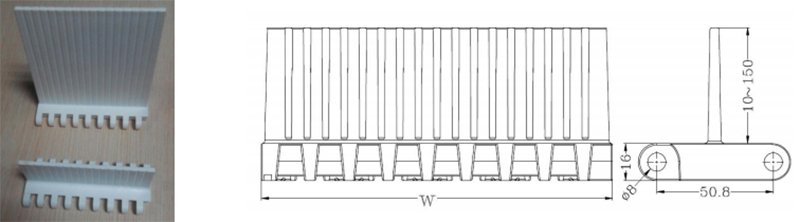

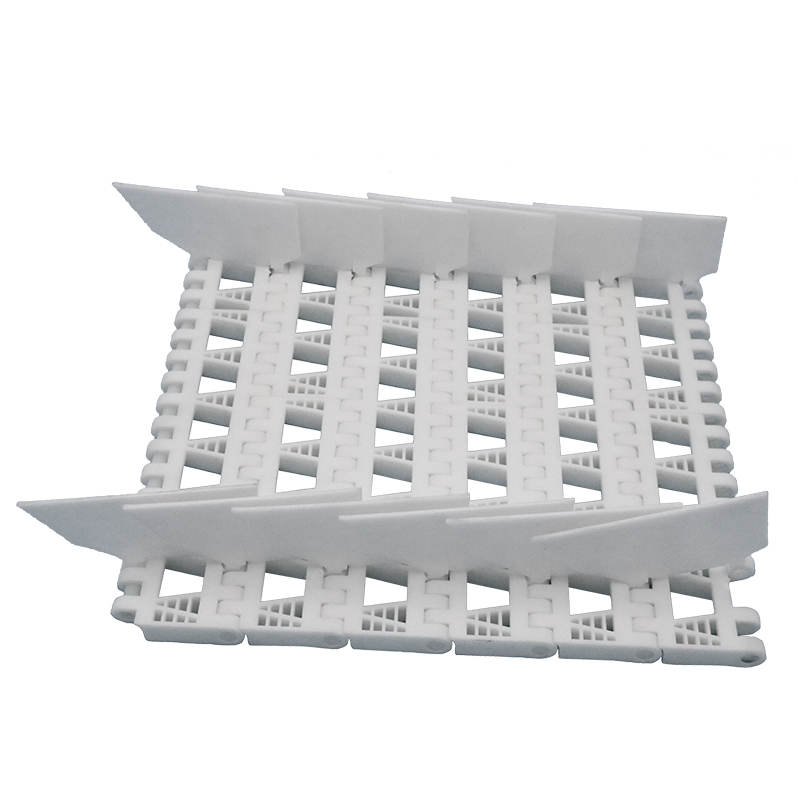

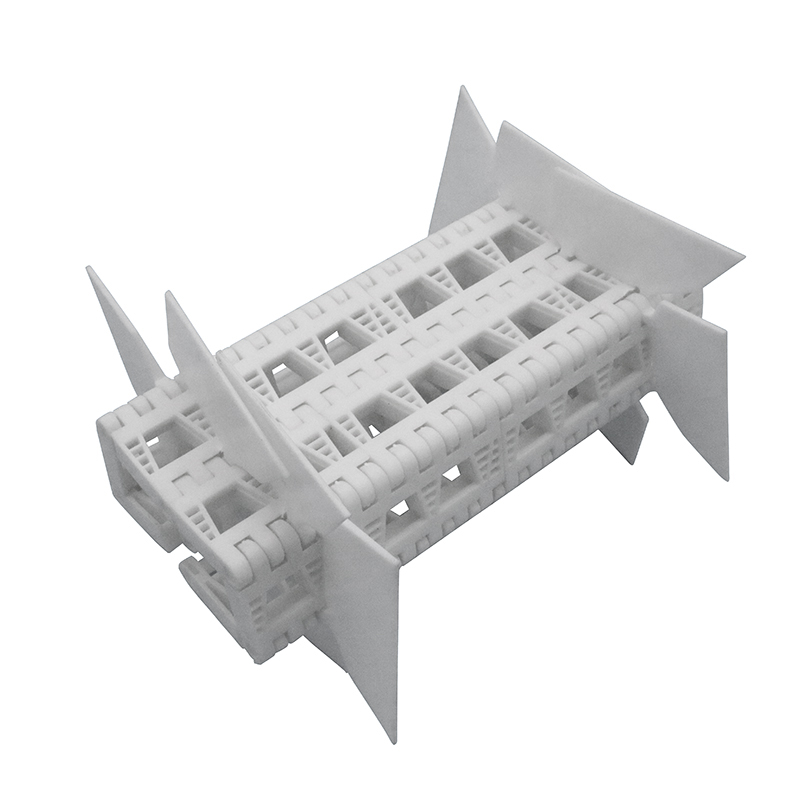

Baffle Plate and Skirts for HOPB Series:

1,Height of Baffle Plate:100mm;150mm
2,Height of Skirts:100mm;150mm

Promise:

1.High quality.

   Quality of products will be strictly checked and every part or machine are well tested by our Quality Control Dept. to ensure it can works well before packaging.

2.Your request be first.

    We accept customized products according your description or drawing.Not untill you confirm  your product details completely will we start manufacturing.

3.Timely After-service .

    After-sales service will be provided Timely.

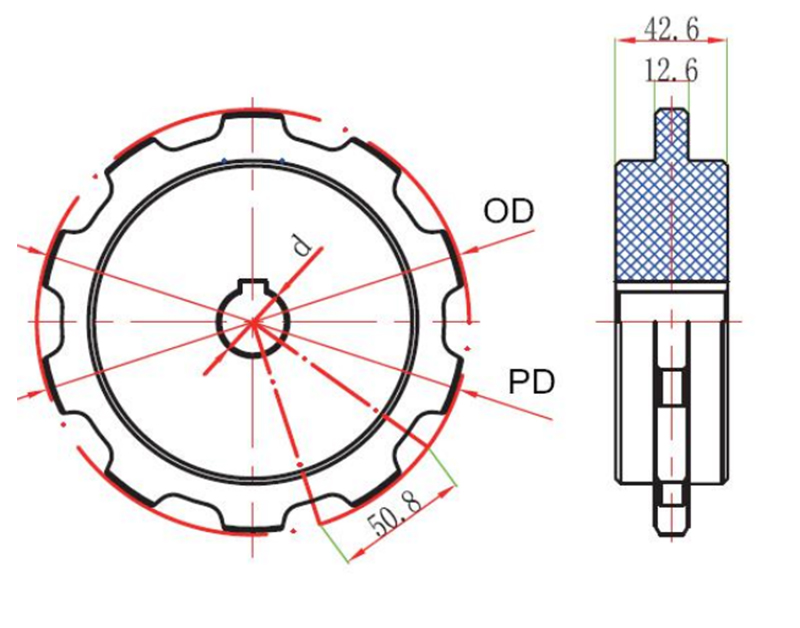

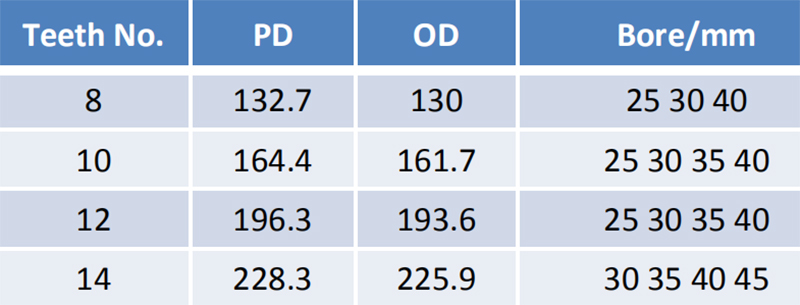

Sprockets for OPB Series :

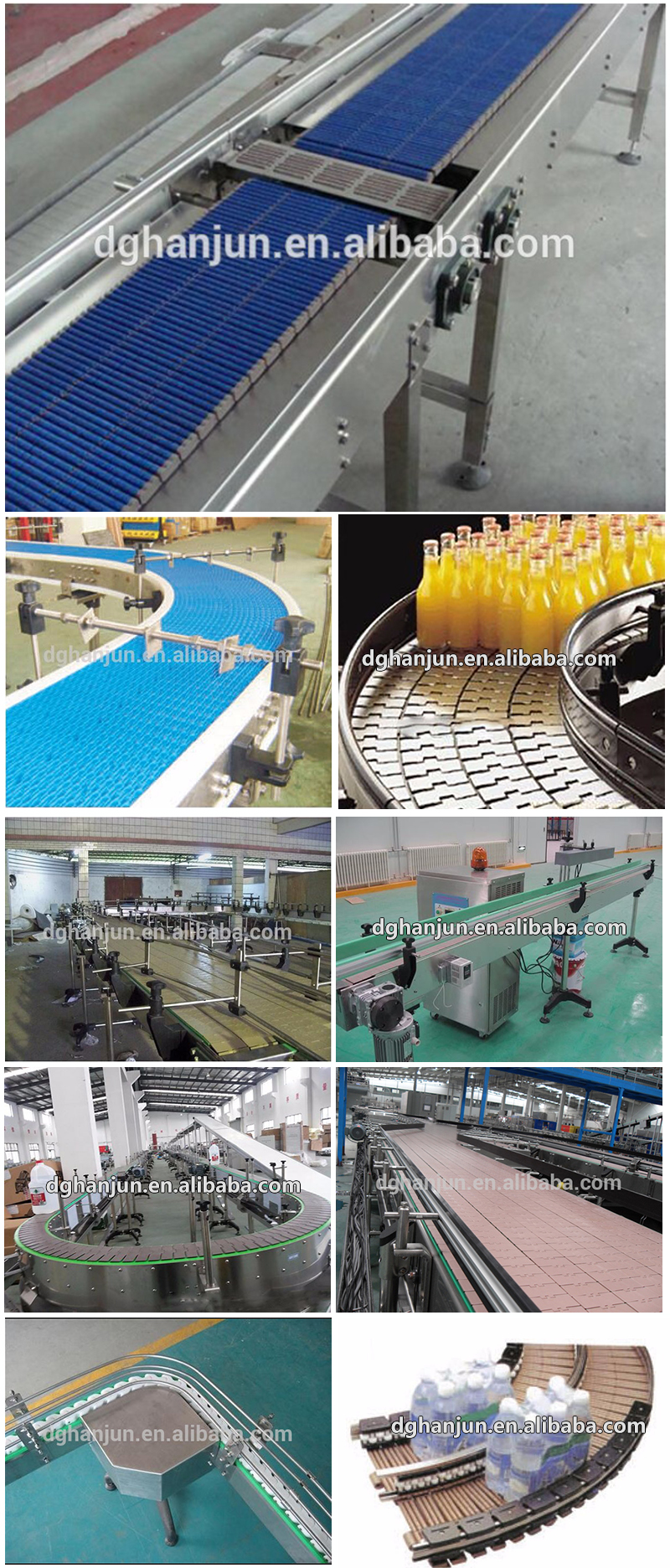

Application scenario:

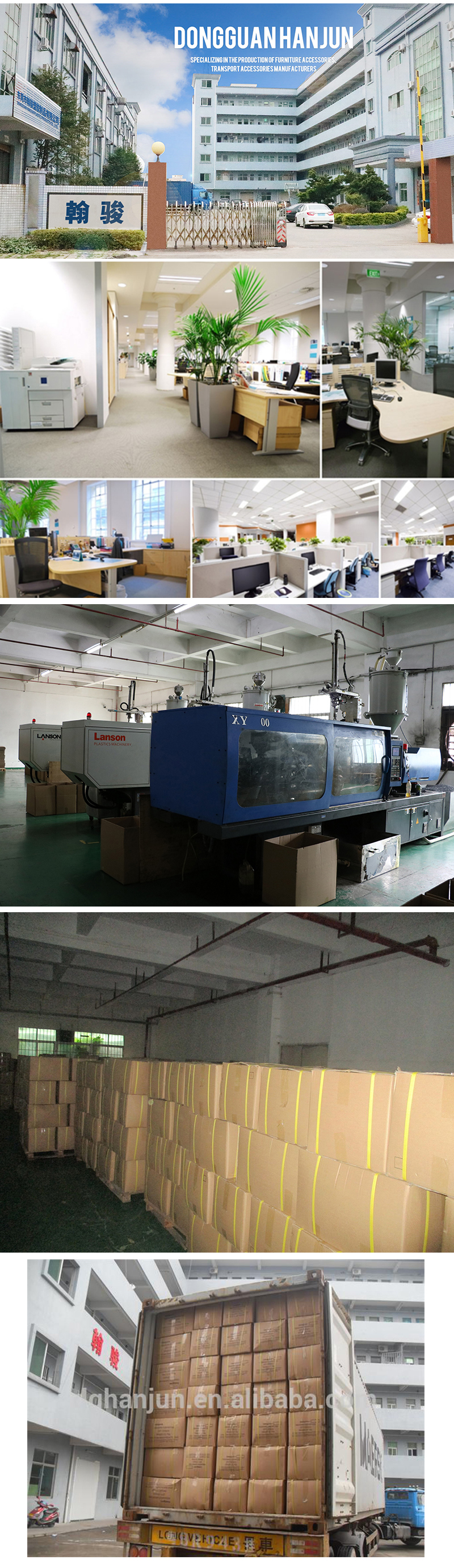

HanJun Compnay Information
